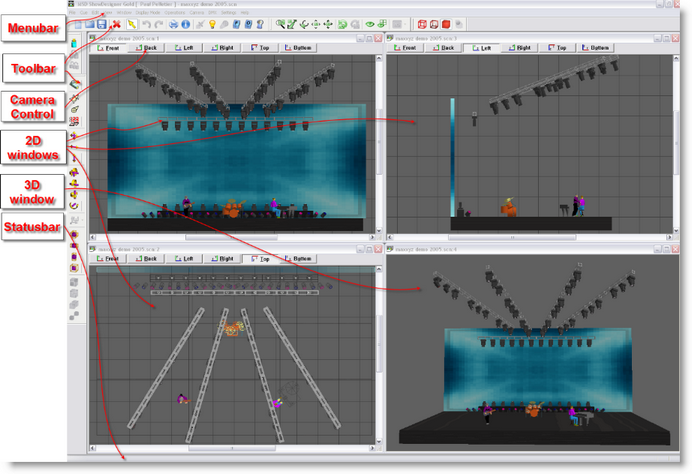

The application window has a menu bar, a status bar, toolbar's, 2D windows and 3D windows.
The menu bar will be covered in Menu the toolbar's in MSD Icons, 2D windows and 3D windows in Window Management.
To build a similar layout as above, simply insert 3 2D views and 1 3D view.
From window menu click Tile.
Set the 2D view one as TOP, one as Left and one as Front
In each view, set the Spot Beam Properties to Never
Then in the menu Settings, click on Store Layout.
