Creating a fixture block |
Top Previous Next |
|
First, create an assembly with the fixtures and objects

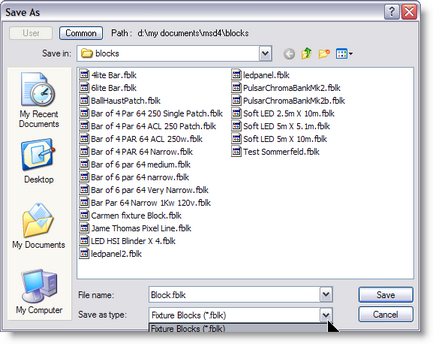

From the File menu click on Export Block...
Give a name to the block.
Make sure the Fixture Block Extension is selected.
Click on Save. |
