Importing Objects in a Scene

Top  Previous  Next
MyShowDesigner Help

When starting a new scene, object list is empty.

Importing objects in a scene is like choosing all the necessary objects that will bee needed to build the scene.

Example, trussing, stage, riser, musical instrument, curtains....



Note: Fixtures are imported separately from the Fixture List







To import objects, follow these steps



From the View menu select Object list

SD_Menu_Main

         SD_Menu_View



From the Object list control, press Import

SD_ObejctList

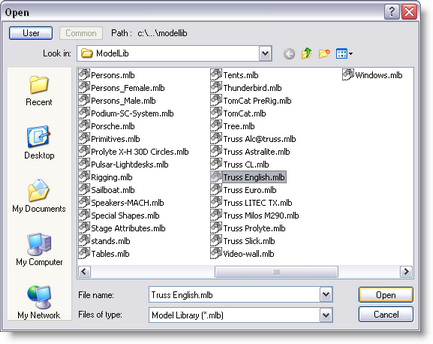

Select a library of objects and press Open

SD_ObjectListOpen

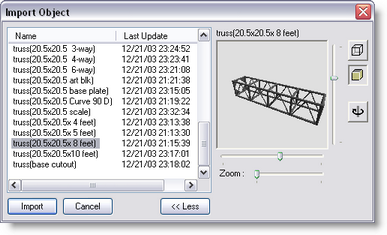

Select one or multiple objects from the left list (Use CTRL or Shift for multiple selection)

SD_ObjectListSelect

Press Import when your selection is done

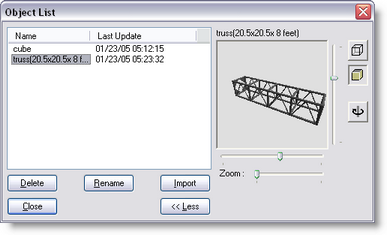

Now the object List will show the imported object

SD_ObjectListImported
